Software architecture is often compared to building a skyscraper. The foundation must be solid, the load-bearing walls correctly positioned, and the flow of people (data) must be efficient. When systems grow in size and complexity, visualizing the internal logic becomes a challenge. This is where the Unified Modeling Language (UML) sequence diagram becomes an essential tool. 🛠️ It provides a structured way to map out interactions between objects over time, turning abstract logic into a readable narrative.
This guide explores the mechanics of sequence diagrams, their role in system design, and how to leverage them for clarity without unnecessary noise. We will move beyond basic definitions into the practical application of modeling behavior, ensuring that technical documentation remains a living asset rather than a forgotten artifact.
📖 Understanding the Sequence Diagram Purpose
A sequence diagram is a type of interaction diagram in the UML standard. While class diagrams describe structure, sequence diagrams describe behavior. They focus on the exchange of messages between objects. The horizontal axis represents the objects involved, while the vertical axis represents the passage of time.
- Static vs. Dynamic: If a class diagram is a blueprint of the building, a sequence diagram is the script for a scene within that building. It shows who does what and when.
- Focus on Time: Unlike other diagrams, time is explicitly defined. Events happen top to bottom. This chronological ordering is critical for debugging race conditions or understanding asynchronous flows.
- Scope of Interaction: It isolates a specific use case or scenario. You do not diagram the entire system at once. You break it down into discrete flows, such as “User Login” or “Payment Processing”.
Why choose this specific notation? It bridges the gap between business logic and technical implementation. Stakeholders can follow the flow of data, while developers can see the method calls required to achieve the result.
🔑 Core Components of a Sequence Diagram
To create an effective diagram, one must understand the symbols. Each element serves a specific semantic purpose. Confusion often arises when these components are misused or omitted.
1. Lifelines
The lifeline represents a participant in the interaction. This could be a user, a subsystem, a database, or a specific software object. Visually, it is a vertical dashed line extending downward from the object’s name. The name usually appears at the top within a rectangle, known as the instance rectangle.
- Object Instances: These represent specific entities, like “Order #123” or “CustomerAccount_A”.
- System Boundaries: Sometimes, a rectangle encloses multiple objects to denote a system boundary, such as “Payment Gateway”.
2. Messages
Messages are the active elements of the diagram. They travel horizontally between lifelines. The type of arrow indicates the nature of the communication.
| Symbol Type | Arrow Style | Meaning |
|---|---|---|
| Synchronous Call | 👉 Solid Arrowhead | Caller waits for a response. Execution pauses. |
| Asynchronous Call | 👉 Open Arrowhead (Forked) | Caller does not wait. Execution continues immediately. |
| Return Message | 🔙 Dashed Arrow | Response sent back to the original caller. |
| Creation | ⬇️ Solid Arrow with ‘X’ | Instantiates a new object during the flow. |
| Deletion | ⬇️ Solid Arrow with ‘X’ (End) | Destroys the object instance. |
3. Activation Bars
Also known as execution occurrences, these are thin rectangles placed on a lifeline. They indicate the period during which an object is active, performing an operation. This is vital for understanding concurrency. If two activation bars overlap, it suggests that the system is handling multiple tasks simultaneously.
- Duration: The length of the bar corresponds to the processing time, though not to scale.
- Nesting: If Object A calls Object B, and Object B calls Object C, the activation bar for B will be nested within the call from A, showing the depth of the stack.
🚀 Advanced Constructs for Logic Control
Real-world systems are rarely linear. They involve conditions, loops, and optional steps. UML provides fragments to model these complex logical structures. These are enclosed in a dashed rectangle with a label.
1. Alt (Alternative)
This represents an if-else structure. It splits the flow based on a condition. Only one path is taken during a specific execution.
- Guard Conditions: Written in square brackets, e.g.,
[user is authenticated]. - Default Path: Often used to represent the
elsescenario if no other condition is met.
2. Loop
Used when a process repeats. This is common in data processing or polling mechanisms.
- Iteration: You can specify the number of iterations, e.g.,
[1 to 100]. - While:
[while condition is true].
3. Opt (Optional)
Similar to Alt, but indicates that the enclosed interaction might not happen at all. It is often used for error handling or optional features.
4. Break
Used to show a failure or a termination condition. If the condition in the guard is met, the rest of the diagram stops.
5. Ref (Reference)
When a sequence diagram becomes too large, you can encapsulate a complex interaction into a single box and reference another diagram. This keeps the high-level diagram clean while preserving detail elsewhere.
🛠️ Designing for Clarity and Maintainability
Creating a diagram is one thing; making it useful for a team is another. A diagram that is too detailed becomes unreadable. One that is too abstract fails to convey logic. Striking the balance requires discipline.
1. Define the Scope Clearly
Start by identifying the trigger. What event starts the sequence? Is it an API request? A user action? A timer? Explicitly state the entry point.
- Entry Point: Place the initiating actor at the top left.
- Exit Point: Ensure the diagram ends with a clear return state or a successful completion message.
2. Abstraction Levels
Do not mix high-level business logic with low-level database queries in the same diagram. If a method call requires ten lines of SQL, abstract that call into a single message. Let the diagram focus on the flow, not the implementation details of every function.
- Layering: Show the Controller, the Service, and the Repository as distinct layers.
- Detailing: If the database logic is critical to the specific use case (e.g., a transaction lock), include it. Otherwise, treat it as a black box.
3. Naming Conventions
Consistency is key for readability. Use clear, descriptive names for messages and objects.
- Objects: Use nouns (e.g.,
Customer,Order,PaymentProcessor). - Messages: Use verbs (e.g.,
ValidateUser,ChargeCard,SendNotification). - Guard Conditions: Use boolean expressions that are immediately understandable.
⚠️ Common Pitfalls in Sequence Modeling
Even experienced engineers make mistakes when modeling interactions. Recognizing these patterns early prevents technical debt in documentation.
1. The “Spaghetti” Flow
When diagrams contain too many crossed lines, they become difficult to trace. This usually happens when there are too many participants or when the flow is not linear.
- Solution: Use
Refframes to encapsulate sub-processes. Break the flow into multiple smaller diagrams (e.g., “Happy Path”, “Error Handling”, “Retry Logic”).
2. Ignoring Timing
Sequence diagrams imply timing, but they do not measure it. Do not assume the vertical distance represents time. However, the order of messages is absolute. Ensure that dependencies are respected.
- Check: Does Object B receive a message before it is created?
- Check: Does Object A wait for Object B before proceeding?
3. Overusing Asynchronous Messages
While asynchronous calls are powerful, overusing them makes the diagram look like a broadcast system. If the result is needed to proceed, a synchronous call is usually more appropriate for the model.
4. Missing Return Messages
For every synchronous call, there should ideally be a return message. Omitting it makes the diagram look like a fire-and-forget system, which might mislead developers about error handling.
🔄 Integrating Diagrams into the Workflow
A sequence diagram is not a static document. It must evolve with the code. Here is how to keep it relevant.
1. Design-First Approach
Draw the diagram before writing the code. This forces you to think about the interface and dependencies before committing to a specific implementation. It helps identify missing requirements early.
- Interface Definition: The diagram defines the contract between objects.
- Gap Analysis: If a message requires data that isn’t available, the diagram highlights this gap.
2. Code Reviews
Use the diagram as a checklist during reviews. Does the actual code flow match the modeled flow? If the code has added a new step not shown in the diagram, update the diagram.
3. Living Documentation
Treat the diagram as a requirement. If the code changes the interaction logic, the diagram must change. Documentation that lags behind code becomes misleading.
🌐 Collaboration and Communication
One of the most significant benefits of sequence diagrams is their ability to facilitate communication between different roles within a project.
1. Bridging the Gap
Business analysts understand the “what” and “why”. Developers understand the “how”. Sequence diagrams sit in the middle.
- For Analysts: It validates the business rules (e.g., “Does the system check stock before deducting?”).
- For Developers: It clarifies the method signatures and data types required between services.
2. Onboarding
When a new developer joins a complex system, reading the sequence diagrams is faster than reading the source code. It provides a high-level map of how the system reacts to events.
3. API Contracts
In microservices architectures, sequence diagrams often serve as the definition of an API contract. They show what data is sent and what data is expected back.
🔍 Deep Dive: A Hypothetical Scenario

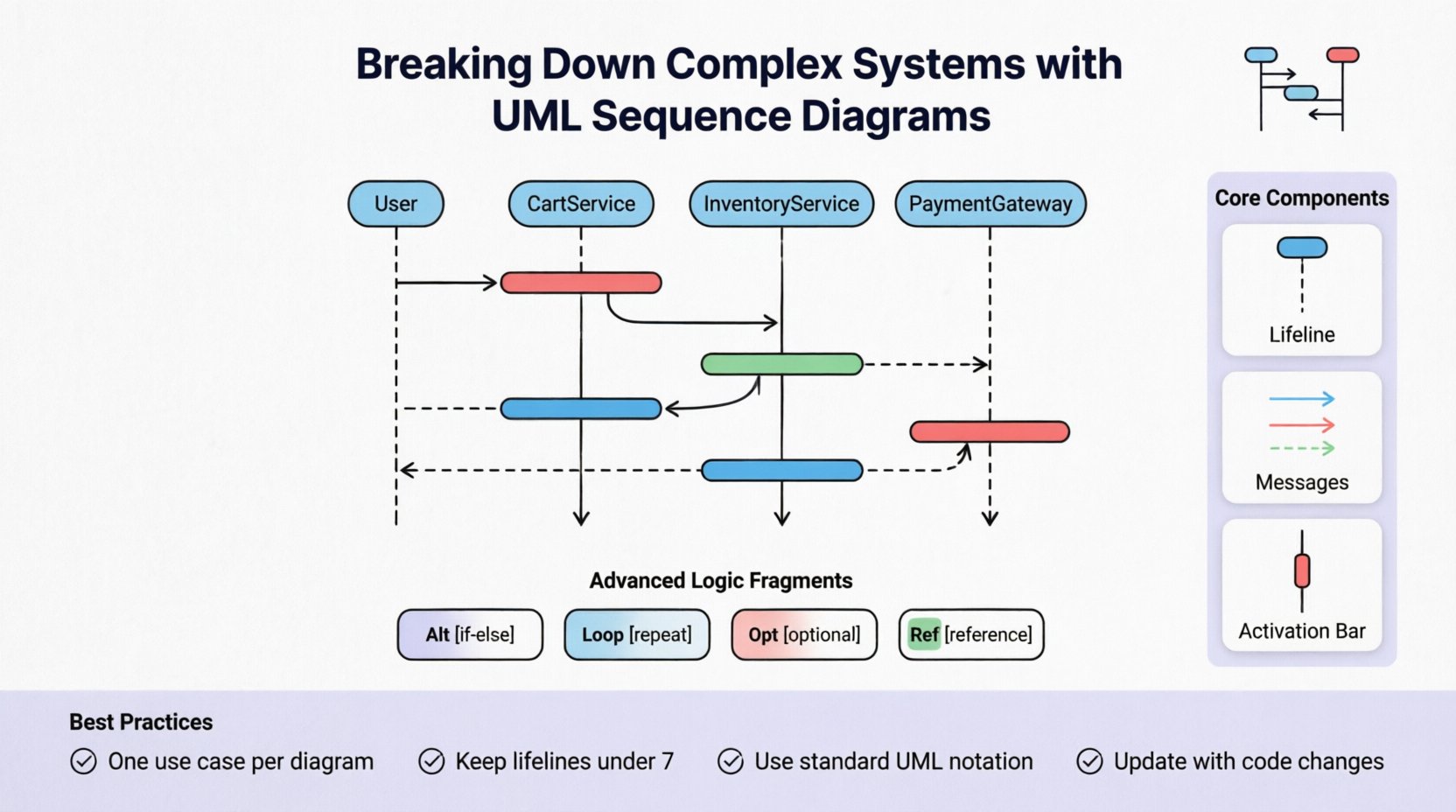

To illustrate the application of these concepts, consider a scenario where a user attempts to purchase an item.
- Initiation: The
Usersends arequestCheckoutmessage to theCartService. - Validation: The
CartServicecallsInventoryServiceto check stock availability. - Branching:
- If stock is available, proceed to payment.
- If stock is unavailable, return an error message to the user.
- Processing: The
CartServicesends aprocessPaymentmessage to thePaymentGateway. - Completion: Upon success, the
CartServiceupdates theOrderServiceand sends aconfirmationto theUser.
This flow demonstrates the use of Alt fragments for stock checks and Synchronous calls for payment processing. It highlights the importance of return messages to close the loop with the user.
📝 Summary of Best Practices
| Aspect | Recommendation |
|---|---|
| Granularity | One diagram per use case. Avoid combining unrelated flows. |
| Participants | Keep the number of lifelines manageable (ideally under 5-7). |
| Notation | Stick to standard UML arrow types to avoid confusion. |
| Updates | Update diagrams alongside code changes. |
| Context | Always label the diagram with the scenario it represents. |
By adhering to these guidelines, teams can ensure that their sequence diagrams remain valuable assets. They serve not just as documentation, but as a design tool that prevents architectural drift. The complexity of modern systems requires this level of rigor. Without it, systems become fragile and difficult to modify.
Investing time in accurate modeling pays dividends during the maintenance phase. When debugging a distributed system, tracing the message flow on a diagram is often faster than stepping through code line by line. This efficiency is the true value of the sequence diagram.
Remember, the goal is simplification. If the diagram adds confusion, it has failed its purpose. Simplify the model, clarify the intent, and ensure the logic is visible to everyone involved in the project lifecycle.
