New Introduction: Why I Finally Took BPMN Seriously (And Why You Might Too)
As someone who’s sat through countless process documentation workshops and tried nearly every modeling notation under the sun, I’ll be honest: I was skeptical about BPMN. Another acronym, another learning curve, another tool promising to “bridge the gap” between business and IT? Sounds familiar, right?
But after six months of hands-on implementation across three different enterprise projects, I’m writing this not as a BPMN evangelist, but as a practitioner who’s been in the trenches. This guide shares my real-world experience—what clicked, what frustrated me, and why BPMN ultimately earned a permanent spot in my toolkit. If you’re a business analyst, product owner, or operations leader weighing whether to invest time in BPMN, consider this your no-BS field report.
What BPMN Actually Solves (From Someone Who’s Been There)
Let’s cut through the marketing speak. A business goal is a target that an organization aims to achieve by performing correctly the related business process. And a business process? It’s simply a set of coordinated activities in an organizational and technical environment that jointly realize that goal.

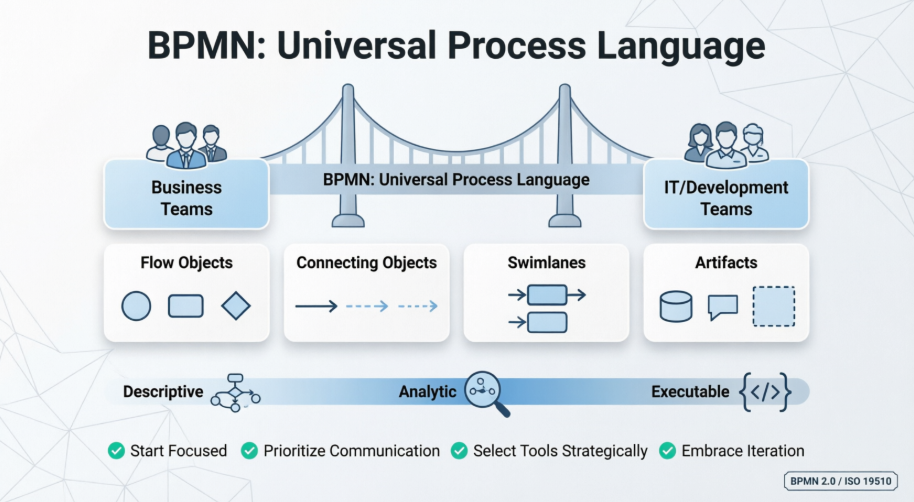

Here’s what resonated with me: BPMN’s primary purpose isn’t to impress technical architects—it’s to create a notation that everyone can understand. From the business analysts drafting initial workflows, to developers implementing the tech, to managers monitoring outcomes. That universal readability? That’s the game-changer.
The Three Levels Where BPMN Shines in Practice
Based on my implementation experience, BPMN adapts beautifully to different maturity levels:
-
Descriptive Process Models – Perfect for high-level stakeholder alignment. If your team knows flowcharts, you’re already 80% there.
-
Analytic Process Models – Where the real process optimization happens. This is what most BPMN training focuses on, and for good reason.
-
Common Executable Process Models – When you’re ready to bridge design to implementation. This is where BPMN generates executable BPEL4WS and creates that standardized bridge between business design and technical execution.
A Quick Reality Check: BPMN’s Evolution (And Why It Matters)
Understanding BPMN’s history helped me appreciate its current stability:
-
Originally developed by the Business Process Management Initiative (BPMI)
-
BPMN 1.0 released publicly in May 2004 (after 2+ years of working group effort)
-
OMG released the specification in February 2006
-
Version 2.0 developed in 2010; current spec released December 2013
-
Latest version (2.0.2) formally published by ISO as ISO/IEC 19510:2013
My takeaway: This isn’t a flash-in-the-pan standard. It’s mature, standardized, and backed by international bodies. That stability matters when you’re investing team training time.
The Core Elements: What I Actually Use Day-to-Day
A Business Process Diagram (BPD) in BPMN is made up of graphical elements designed to feel familiar—like flowcharts, but purpose-built for business processes. The genius? A small set of distinguishable shapes that scale from simple to complex without losing readability.
The Four Categories That Organize Everything
BPMN groups elements into four intuitive categories. This structure helped my team onboard faster because we could recognize patterns:
-
Flow Objects
-
Connecting Objects
-
Swimlanes
-
Artifacts
Flow Objects: The “Big Three” I Reference Constantly
Every BPMN diagram starts here. Three core shapes, infinite combinations:
Event (Circle)
Something that “happens” during a process. Events affect flow and usually have a cause or impact. Represented by circles with open centers for internal markers. Three types based on timing: Start, Intermediate, and End.
Activity (Rounded Rectangle)
Generic term for work performed. Can be atomic (Task) or compound (Sub-Process, marked with a + sign). This is where the actual “work” lives in your diagram.
Gateway (Diamond)
Controls divergence/convergence of sequence flow. Determines decisions, forking, merging, and joining paths. Internal markers indicate behavior type:
| Exclusive Gateway
Follow only one path |
 |
|---|---|
| Inclusive
Follow one or more paths |
 |
| Parallel
Follow all paths |
 |
Flow Object Visual Reference (Saved Me Countless Times)
Events
Activities
Gateways
Connecting Objects: How Everything Links Together
Flow objects mean nothing without connections. Three connectors do the heavy lifting:
Sequence Flow (Solid line with solid arrowhead)
Shows the order activities perform in a Process. Note: BPMN intentionally avoids the term “control flow.”
Message Flow
Symbolizes information flow across organizational boundaries. Can attach to pools, activities, or message events. Often decorated with an envelope showing message content.
Association
Connects annotations or data objects to activities. Critical for documentation without cluttering the core flow.
Swimlanes: Organizing Responsibility (A Game-Changer for Cross-Functional Teams)
Many methodologies use swimlanes; BPMN implements them with two practical constructs:
Pool – Represents a Participant in a Process. Acts as a graphical container partitioning activities from other Pools—essential for B2B scenarios.
Lane – A sub-partition within a Pool extending its full length (vertically or horizontally). Used to organize and categorize activities by role, department, or system.
Pro tip from my experience: Start with Pools for external parties and Lanes for internal roles. This mental model reduced confusion in our stakeholder workshops dramatically.
Artifacts: Adding Context Without Clutter
BPMN allows flexible extension for specific contexts (insurance, banking, etc.). Three pre-defined artifacts I actually use:
Data Object
Shows how data is required or produced by activities. Connected via Associations.
Data Store
Represents persistent storage the process can read/write beyond its scope.
Group
Rounded-corner rectangle with dashed line. Used for documentation or analysis without affecting Sequence Flow.
Annotation
Mechanism for adding explanatory text. Invaluable for onboarding new team members.
Simple or Complex? How BPMN Scales With Your Needs
One driver for BPMN’s development: create simple modeling while handling inherent business process complexity. The solution? Organize graphical elements into specific categories, then layer variation within those categories.
The event table below shows how BPMN supports complexity without changing the basic look-and-feel. This scalability is why I can use the same notation for a quick stakeholder sketch and a detailed implementation spec.
Tooling That Actually Amplifies BPMN’s Value (My Hands-On Assessment)
Notation is foundational, but the right tooling multiplies impact. After evaluating several options, here are the features that delivered genuine ROI in my projects:
Process Drill-Down and Sub-Process Management
Collapsing complex sub-processes for executive views, then expanding for technical deep-dives, maintained diagram readability across stakeholder levels. This feature alone saved hours in review meetings.
Integrating BPMN with Other Modeling Standards
Linking BPMN workflows to UML class diagrams for system design or wireframes for UI planning created a holistic view that prevented siloed thinking. Critical for our cross-functional agile teams.
Working Procedure Editor for Detailed Specifications
While Business Process Diagrams provide strategic overview, the working procedure editor enabled documentation of step-by-step instructions for individual tasks. Exporting combined diagrams plus procedures created self-contained operational playbooks our operations team actually used.
As-is and To-be Process Modeling for Transformation Projects
Maintaining traceability between current and future state models helped demonstrate ROI to leadership. Side-by-side “before and after” views streamlined change management conversations—no more “but how is this different?” debates.
RACI & CRUD Charts: Visual Accountability Assignment
Generating RACI charts directly from BPMN diagrams saved significant manual effort. Automatically assigning “Responsible” roles based on swimlane placement reduced ambiguity in team handoffs. This feature paid for itself in one project.
Process Animation and Simulation: Bringing Diagrams to Life
Animating process flows helped stakeholders intuitively understand bottlenecks. Simulation capabilities enabled testing resource allocation scenarios before implementation—reducing costly production trial-and-error.
Note: Advanced features like animation, simulation, and RACI chart generation typically require professional-tier tools (e.g., Visual Paradigm Standard/Professional/Enterprise editions), but core BPMN notation remains accessible through free or open-source alternatives.
New Conclusion: Why BPMN Earned Its Place in My Toolkit (And Might in Yours)
After evaluating numerous process documentation approaches, BPMN distinguishes itself as a rare standard that delivers on both clarity and capability. It’s not without challenges—the learning curve exists, and over-engineering diagrams remains a genuine risk—but when applied thoughtfully, it fundamentally transforms how teams collaborate on process improvement.
Key takeaways from my practitioner experience:
🔹 Begin with focus: Model one core process end-to-end before attempting enterprise-wide workflows. Our first successful pilot was a simple customer onboarding flow—not the entire order-to-cash cycle.
🔹 Prioritize communication: If stakeholders can’t grasp your diagram within 60 seconds, simplify the representation. BPMN’s power isn’t in showing everything you know—it’s in conveying what matters.
🔹 Select tools strategically: Leverage advanced features (simulation, RACI) when they solve documented problems, not merely because they’re available. We waited until our third project to invest in simulation—and only because we had a specific bottleneck to analyze.
🔹 Embrace iteration: BPMN diagrams should evolve alongside processes—treat them as living artifacts rather than one-time deliverables. Our most valuable diagrams have version histories showing how the process matured.
Whether you’re a business analyst, product owner, or operations leader, BPMN offers a shared visual language that converts process ambiguity into actionable clarity. Based on this practitioner’s experience, that capability isn’t just valuable—it’s becoming indispensable in today’s complex business landscape.
If you’re on the fence: start small, stay focused on communication over completeness, and let the notation grow with your team’s maturity. That’s the approach that turned my skepticism into advocacy.
